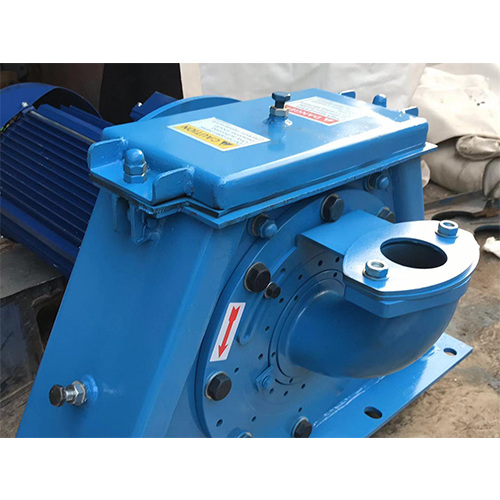

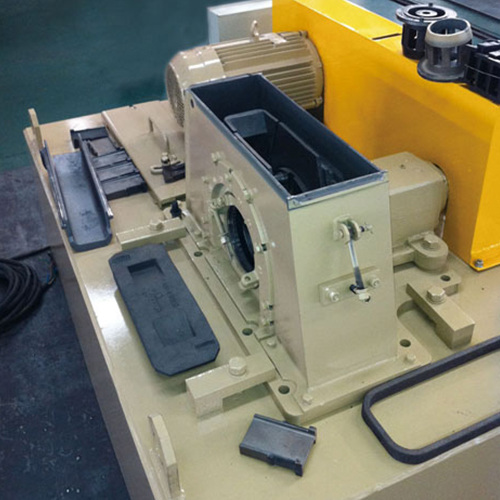

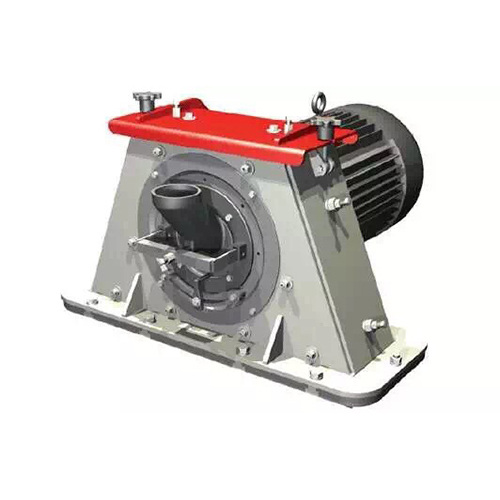

TFQ034 High efficiency shot blasting mac...

Shot blasting machine (using high-efficiency direct coupled shot blasting machine technology from Swiss+GF+· DISA company)

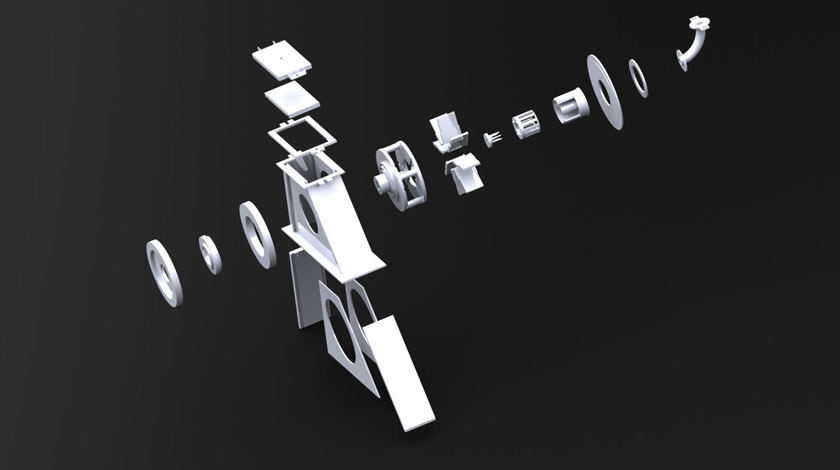

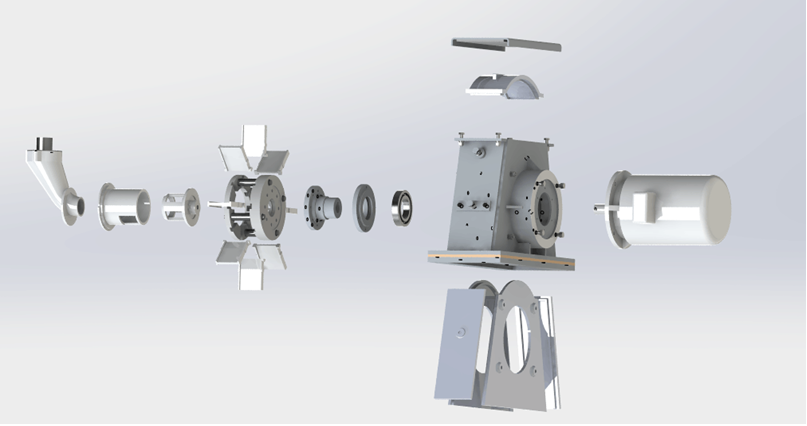

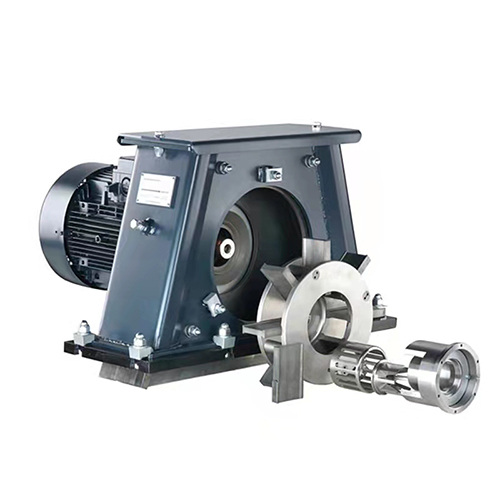

The TFQ034 high-efficiency shot blasting machine is composed of an impeller, blades, shot separation wheel, directional sleeve, inlet pipe, protective plate, shield, special motor, etc. The projectile flows into the pellet sorting wheel through the inlet tube, undergoes pre acceleration, and is ejected through the directional sleeve. It is then further accelerated by the blades and ejected at high speed to reach the surface of the workpiece for strong impact, in order to achieve the purpose of cleaning

Main features and advantages

(1) Easy access to the interior of the impeller from the front of the shell

(2) Selective replacement, long-life casting liner

(3) The fully double labyrinth sealing structure effectively prevents material spillage

(4) The T-shaped nut on the cover can be replaced

(5) U-shaped feeding elbow fixing device for better adjustment and assembly

(6) Direct coupling transmission allows existing motors to be utilized

(7) Both single-sided and double-sided impellers can be used

(8) Less wear on parts due to better concentration and more precise calibration
