Pulse cartridge type dust collector

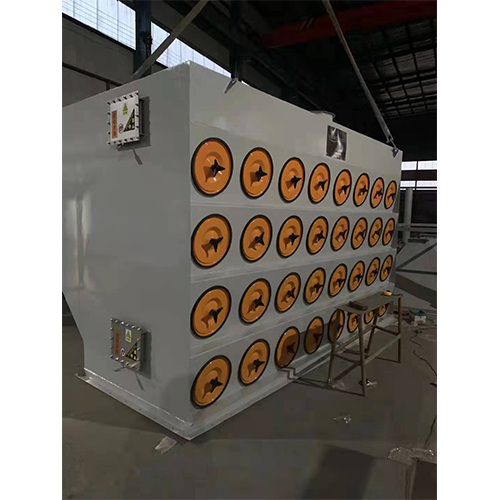

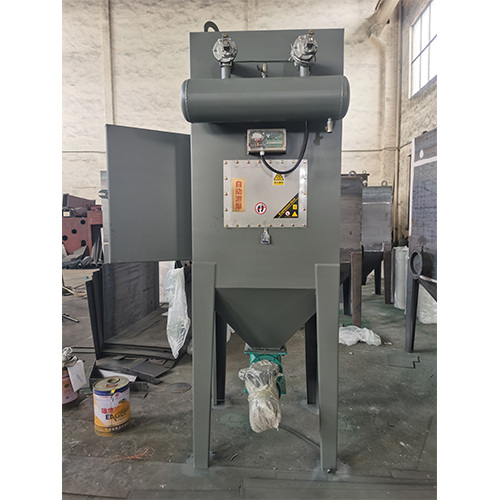

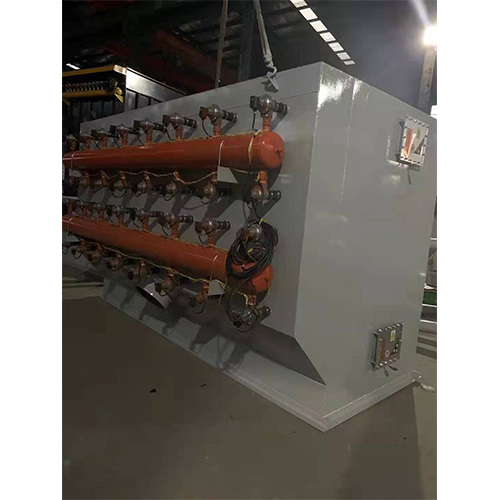

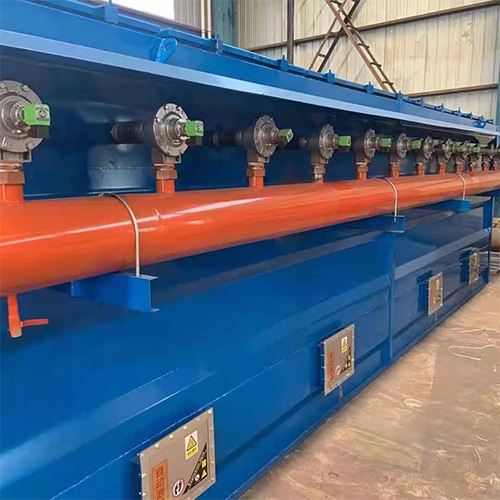

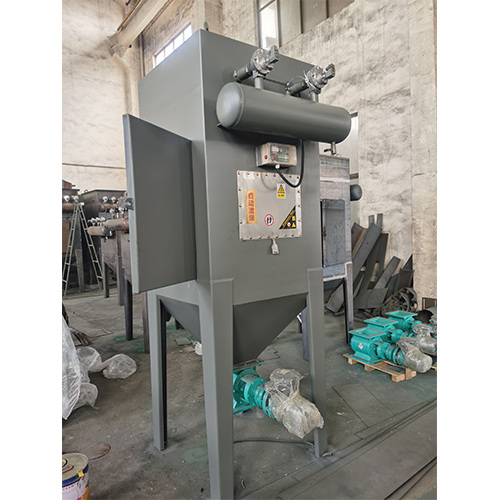

The pulse-type filter cartridge dust collector is provided with an inlet, a filter cartridge, an outlet, an air bag, a pulse controller, a blowout valve, a blowout pipe, etc. The filter cartridge is folded and rolled by polyester fiber, its lower end is closed, and the upper end center is located in the lower opening of the blowout pipe. After the dust-bearing gas enters the dust collector by the inlet, the airflow speed slows down, and the coarse particles fall out of the airflow into the dust collecting room. Si-micro dust is blocked on the outer surface of the filter cartridge when the air flow through the filter cartridge, and the clean gas is discharged by the outlet. When the dust on the surface of the filter barrel is thick, the pulse controller issues an instruction to open the injection valve, and the compressed air in the air bag is ejected at high speed through the injection pipe, while inducing surrounding air several times the injection volume into the filter barrel. And it shoots from the inside out. The dust on the outer surface of the filter cartridge is blown down into the dust collection chamber, and finally discharged by the ash hopper. The dust remover adopts pulse jet mode, which not only completely cleans the dust, but also does not harm the filter cartridge, and the service life of the filter cartridge is guaranteed. The cleaning process is automatically controlled by the pulse controller. Pressure difference control or time control are available.
