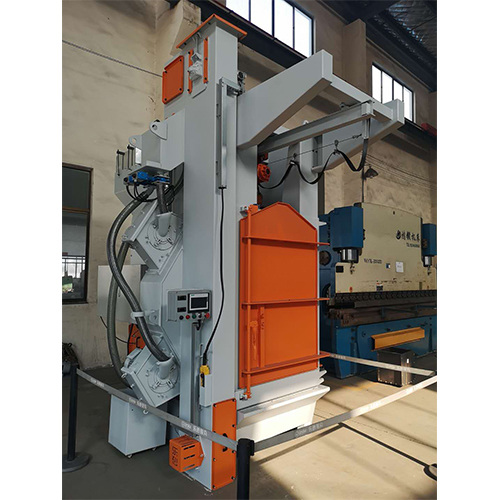

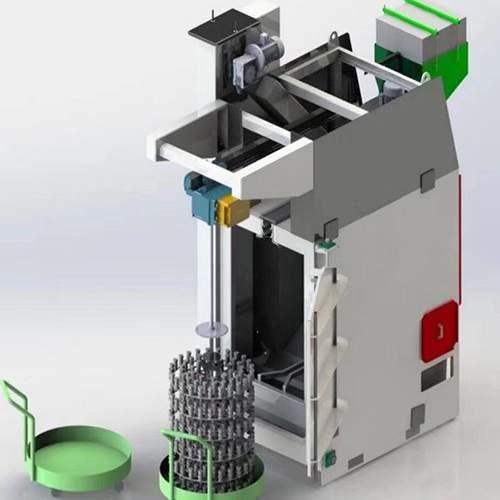

Hook shot blasting machine TF-H2S0812
TF-H3D1T1215 specifications and parameters
Product features.
1: The room body and door panels are made of all manganese steel plates (Mn13 welded in one go), and independent manganese steel plates are hung in the shot blasting hot zone for easy replacement.
2: The door frame adopts a palace style multi-channel sealing structure, without steel shot dust flying out
3: Dust reduction, cyclone, and three-stage pulse filtration dust removal system with better effect, emitting dust content ≤ 10mg/m
4: The temperature and pressure difference monitoring system of the dust collector ensures the stable operation of the dust removal system.
5 shot blasting machines for overall dynamic flat street inspection and assembly, with lower noise and longer lifespan
The continuous mobile workpiece control system, combined with efficient high flow shot blasting equipment, effectively shortens the shot blasting time.
7: Detecting the rotation axis sensor to prevent blockage and slippage
8: The control system automatically reminds the replacement of vulnerable parts and equipment maintenance
9 devices can be upgraded and integrated into the production management system (MES)
10: A management system for configuration methods effectively eliminates quality issues caused by human operational errors
|
|
Function configuration |
description |
remarks |
|
Shot blasting machine |
Shot blasting motor power |
11/15kw×3 |
|
|
Shot blasting machine model |
FT380 |
|
|
|
FT380 traffic |
200/270KG/min |
Can reduce frequency and increase current |
|
|
Independent speed regulation of frequency converter |
|
Each shot blasting machine is independently adjustable |
|
|
Indoor body |
Door opening and closing method |
Cylinder driven |
Connecting rod drive, stable sealing |
|
Door panel |
Mn13 |
Thickness 6mm |
|
|
Strengthen the protective plate in the hot zone |
Mn13 |
Thickness 10mm |
|
|
Room protection board |
Mn13 |
Thickness 6mm |
|
|
seal up |
Unique sealing design |
Prevent steel balls from flying out |
|
|
Pill material circulation system |
Improve motor efficiency |
2.2kw |
|
|
Pill material increase amount |
40/50t/h |
|
|
|
Top spiral conveyor |
1.1kw |
|
|
|
Bottom spiral conveyor |
1.1kw |
|
|
|
Pneumatic pill valve |
|
Combination type, manually adjustable flow rate |
|
|
PID electric shot valve |
Optional equipment |
|
|
|
Automatic online pill supplementation |
|
Timely supplement steel shot |
|
|
Work operation |
Workpiece operation size |
￠1200㎜×1500㎜ |
|
|
Door opening size |
Customizable
|
|
|
|
Self rotation drive |
Dual chain variable frequency drive |
|
|
|
Rotational speed |
2-6r/min |
Continuously adjustable |
|
|
Rotation mode |
Continuous cyclic movement |
No blind spots coverage, improve efficiency |
|
|
Self rotating drive motor power |
0.55kw×2 |
|
|
|
Lifting weight |
1T |
You can choose 2T |
|
|
Pulse dust removal system. |
Settlement box |
built-in |
|
|
Dust removal fan |
5.5kw |
|
|
|
Filter cartridge filtration area |
90㎡ |
|
|
|
filter element |
Anti static and flame retardant |
|
|
|
muffler |
|
|
|
|
Ash collection box |
|
|
|
|
Differential pressure monitoring of dust collector |
Optional equipment |
|
|
|
Dust collector temperature monitoring |
Optional equipment |
|
|
|
electrical system |
Sealing grade of electrical control cabinet |
IP54 |
customized |
|
Low voltage electrical appliance brand |
Schneider |
|
|
|
PLC/touch screen |
siemens |
|
|
|
Gearbox brand |
BANGDUOLI |
|
|
|
Pneumatic components |
AIRTAC |
|
|
|
safety system |
Axis sensor monitoring |
|
|
|
Bearing protection cover |
|
|
|
|
Production management |
Barcode two-dimensional scanning |
Optional equipment |
|
|
data record |
Optional equipment |
|
|
|
Historical data curve recording |
Optional equipment |
|
|
|
Fault remote channel |
Optional equipment |
|
|
|
|
|
|
