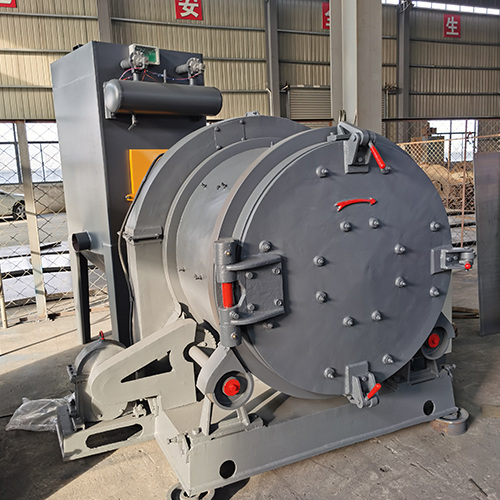

Roller blasting machine TFQ3100
TFQ3100 specifications and parameters
|
|
功能配置 |
规格说明 |
各注 |
|
抛丸器 |
抛丸器 |
TF360 |
|
|
抛丸电机功率 |
7.5KW/11KW |
|
|
|
马达品牌 |
微特 |
|
|
|
钢丸流量 |
180kg/min |
|
|
|
抛丸器易损件 |
精密铸造 |
|
|
|
钢丸速度 |
40-75m/s |
|
|
|
提升循环系统 |
提升斗 |
铸造 |
|
|
钢丸循环量 |
10/15T/H |
|
|
|
滚筒运转系统 |
滚筒旋转驱动电机功率 |
1.5KW |
|
|
滚筒护板材质 |
铸造合金/不锈钢 |
|
|
|
滚筒最小孔 |
≧10㎜ |
|
|
|
滚筒开口直径 |
1000㎜ |
|
|
|
滚筒单次载重量 |
300kg |
|
|
|
除尘系统 |
沉降箱 |
选配 |
|
|
旋风体 |
选配 |
|
|
|
脉冲控制系统 |
PLC |
|
|
|
阻燃过滤面积 |
80㎡ |
|
|
|
滤芯品牌 |
定制阻燃滤芯 |
|
|
|
消音器 |
选配 |
|
|
|
除尘器灰尘收集箱 |
选配 |
|
|
|
除尘排放 |
≤10mg/㎡ |
|
|
|
气动件 |
品牌 |
亚德客 |
|
|
轴承 |
品牌 |
SKF |
|
|
减速机 |
品牌 |
龙威 |
|
|
电控系统 |
配电柜 |
定制 |
|
|
低压电器 |
施耐德 |
|
|
|
PLC和触摸屏 |
西门子 |
|
|
|
机器的外形尺寸: 长×宽×高---------------------2078×2165×1860mm |
|||
Product Features
This machine uses a high-speed rotating impeller to throw projectiles towards castings or forgings that are constantly flipping inside the drum, in order to remove residual sand or oxide scales on their surfaces. Uniform cleaning, high productivity, suitable for cleaning small parts weighing less than 15 kilograms in small and medium-sized casting and forging workshops.
Due to the separate dust collection device of this machine, the installation location is not limited by the workshop ventilation pipeline. This machine has less environmentally friendly dust and is equipped with an automatic parking device, making it easy to operate.
